GSE CONCRETE Software

Part of General Structural Engineering (GSE) software suite

Reinforced Concrete, Slab and Foundation Design Software

(American ACI-318)

(ACI-318, CSA-A23.3 and ECCS 203)

GSE Concrete offers a versatile platform for designing concrete members subjected to a range of analyses, including linear, P-Delta, non-linear, seismic, dynamic analysis, and more. The software also provides efficient tools for concrete slab design. It aligns with industry standards such as the American ACI-318, the Canadian CSA-A23.3, and the Egyptian code ECCS 203.

Have questions about buying the right solution?

GSE Concrete Software Overview

The GSE Concrete program offers a versatile platform for designing concrete members subjected to a range of analyses, including linear, P-Delta, non-linear, seismic, dynamic analysis, and more. The software also provides efficient tools for concrete slab design. It aligns with industry standards such as the American ACI-318, the Canadian CSA-A23.3, and the Egyptian code ECCS 203.

SLAB ENGINEERING

GSE Concrete allows for complete slab design within the same environment. It allows users to quickly generate the design strips of any concrete slabs. The assistant, called Slab Engineering, generates column strips and middle strips that are adapted to the geometries of the bidirectional span of the slab. This assistant is directly linked to the automated mesh generation functionalities, allowing to use the geometrical elements such as supports, walls and openings for both the finite elements model and the design strips generation.

SLAB GENERATOR

In addition, the GSE Concrete software includes a concrete Slab Generator allowing to seamlessly generate a simple concrete slab providing a quick and efficient design. Its easy-to-use interface allows to quickly create a slab based on a simple geometry.

Any questions? We've got answers!

Take the next step to discover the GSE Concrete Software by completing the following form. One of our experts will get in touch with you shortly. We look forward to assisting you with your inquiries and providing you with the information you need.

SAFI USA

American Concrete Institute (ACI) 318 standard

GSE Concrete

Reinforced Concrete, Slab and Foundation Design Software (ACI-318,CSA-A23.3, ECCS 203)

The GSE Concrete Software is a robust technology built on a ribbon-based interface, empowering structural engineers with advanced capabilities for analysis and design of concrete members, as well as concrete slab and foundation design.

GSE Concrete

Reinforced Concrete, Slab and Foundation Design Software (ACI-318, CSA-A23.3, ECCS 203)

Structural program for analysis and design of concrete structures,  in accordance to the ACI-318, CSA-A23.3 and ECCS 203.

Call SAFI USA

Toll Free Number

1 (800) 810-9454

Call SAFI USA

Toll Free (USA)

1 (800) 810-9454

Slab Generator

Automated generation of simple reinforced concrete slabs

Integrated within the comprehensive General Structural Engineering (GSE) software suite, SAFI’s Concrete Slab Generator stands as a seamless solution for swiftly creating efficient concrete slab designs. Its user-friendly interface simplifies the process of generating slabs based on basic geometries.

By inputting a few design parameters, users can effortlessly design a reinforced concrete slab through an intuitive and rapid workflow. Furthermore, the practical editing tools empower users to make adjustments to the slab as needed.

With features like reinforcement visualization and advanced analysis tools, users can confidently approach both the analysis and design aspects of concrete slabs, ensuring a robust and reliable design of concrete slabs.

Fill out the following form to access the GSE Concrete - Slab Generator demonstration.

Slab Engineering

Intuitive generation of complex reinforced concrete slabs

As an integral component of the General Structural Engineering (GSE) software suite, the reinforced concrete slab design assistant Slab Engineering is the ultimate tool for slab design in a simple and intuitive way. Slab Engineering empowers users to streamlining slab design with simplicity and allows to effectively generate design strips for concrete slabs of diverse specifications.

Directly connected to the automated functions within the integrated finite element framework, this application offers users a specialized environment for executing mesh generation. Slab Engineering seamlessly defines key model geometric elements, including supports, walls, and openings.

Fill out the following form to access the GSE Concrete – Slab Engineering demonstration

Technical Specifications

As an integral component of the GSE (General Structural Engineering) software, GSE Concrete allows the design and verification of concrete members subjected to a linear, P-Delta, non-linear, seismic or dynamic analysis.

GSE Concrete represents a cutting-edge technology grounded in the concept of physical members, enabling precise reinforcement design for continuous elements like beams and columns. It offers the flexibility to design either specific portions or the entirety of a structure with accuracy

The GSE Concrete software supports the following design codes:
•  American ACI-18
•  Canadian CSA-A23.3
•  Egyptian ECCS 203

• Design of bending, shear, torsion and combined axial forces and bending.
• Second order effects may be accounted for according to the simplified method of the design codes.
• Effects of lateral drift and internal member deformations may be considered together or independently.
• The program allows to design continuous members.
• The program calculates all required reinforcement and development lengths.
• The program can design longitudinal reinforcement, stirrups and column reinforcement for common concrete section shapes.
• Includes libraries for standard American, Canadian or Egyptian reinforcement bars.
• GSE concrete allows to calculate the resistance of the elements once the reinforcement is known, which allows to improve the design of a structure or to evaluate the resistance of an existing one.
• Reinforcement bars and stirrups, applied loads, resistance curves and interaction diagrams are displayed graphically.
• Verification of bending, shear, torsion and combined axial forces and bending.
• Calculated reinforcement can be further edited and additional resistance verification calculations can be performed on the whole or selected parts of the structure. This cyclic design method allows to closely match practical user requirements without the need of tedious hand calculations.
• Reinforcement layouts, resistance curves and interaction diagrams are displayed graphically.
• The program considers longitudinal reinforcement and bent bars for bending resistance.
• The program considers straight or inclined stirrups and bent bars for shear and torsion resistance.
• GSE concrete considers column reinforcement for combined axial and bending loads.
The soil-structure interaction is an important component in the design of a building or any structure in general. In order to improve users’ productivity, the GSE software provides an automatic slab on grade generation function.

This function makes it possible to distribute the soil stiffness to the slabs modeled by finite elements by the means of equivalent springs. This allows for the complete analysis and design of slabs, using a 3D model as well as the reinforced concrete design tools from the GSE Concrete module. With this function, users can generate and efficiently analyze slabs of complex geometries. The function in the GSE Concrete automatically calculates the nodal tributary areas to save users’ time. The foundation can be supported by either: ground springs, regular springs, fixed supports, piles or imposed displacements allowing flexible modeling for users.

The GSE Concrete supports several concrete design standards. With the automated slab generation and design tools in the GSE, the longitudinal reinforcement required to withstand bending forces is calculated according to the design parameters defined by the user. The 3D visualization of the reinforcement is available in the GSE Concrete software.
• Automated shear walls generation

The automated shear wall creation tool can be used to generate the finite element mesh according to the defined floors of the building. It is strongly recommended to define the storeys before generating the shear walls. The finite element mesh will be adjusted according to the height of the different storeys. A preview of the shear wall is shown in the generation window.
• Automated Column line generation

A column line serves as a reference guideline for determining the location of the column strips. These lines can be positioned on the supports along the slab’s two principal axes. The automated column line function facilitates the automatic detection of column lines along both axes of the slab.

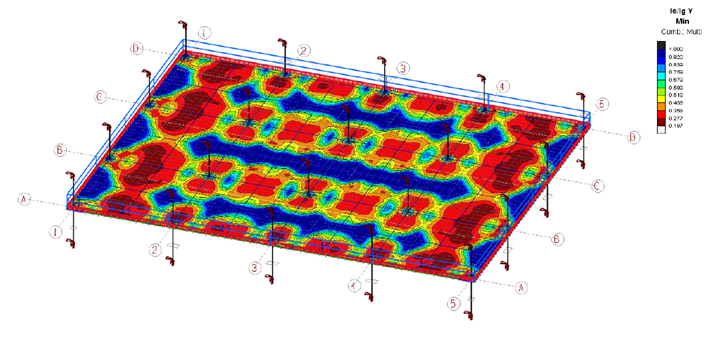

The calculation of the immediate cracked deflections for slabs and beams uses the new Cracked SLS load combinations.

This command allows to define the various parameters required to perform a cracked elements analysis and calculate immediate and long-term cracked deflections.
• Punching shear over time history on columns and drop panel

Additional parameters are available to verify the punching shear around drop panels.

The drop panels can be rectangular, circular or defined with an existing mesh contour refinement area.

• GSE’s Slab Engineering reinforced concrete slab design assistant becomes the ultimate tool for slab design in a simple and intuitive way. It allows users to quickly and efficiently generate design strips for any concrete slab.


Directly connected to the automated functions within the integrated finite element framework, this application offers users a specialized environment for executing mesh generation. Slab Engineering seamlessly defines key model geometric elements, including supports, walls, and openings.



The assistant generates column strips and middle strips that are adapted to the geometries of the bidirectional span of the slab. This assistant is directly linked to the automated mesh generation functionalities, allowing us to use the geometrical elements such as supports, walls and openings for both the finite elements model and the design strips generation.



Slab Engineering supports a complete and efficient solution for slab design. Without a doubt, this new technological breakthrough will help increasing productivity and success in various design projects.

• GSE’s Slab Generator allows users to seamlessly generate simple concrete slabs providing a quick and efficient design. Its easy-to-use interface allows to quickly create a slab based on a simple geometry.

By simply adding basic design parameters, users can generate a reinforced concrete slab in a quick and intuitive process. Users can edit the generated slab with practical tools available.

• Displayed graphically on the 3D model through color representation or presented numerically in spreadsheets and reports

• Customizable, user-friendly, and exhaustive report generation in multiple formats including Word document and Excel worksheet

• Generate executive report summary by printing the results for only the critical load combination

• Possibility to hide or dim a selection of elements of the model

• Allows for graphical or tabular editing of selected elements

• Animated graphical results, buckling and vibration modes

• The GSE Concrete software includes the Concrete Calculator™ , the Critical Concrete Sections Calculator and the Foundation Calculator

The Concrete Calculator software streamlines the analysis and design process of reinforced concrete beams, slabs and columns cross sections as well as reinforced concrete footings.

The Foundation Calculator allows users to quickly and easily design reinforced concrete footings without the need to create and analyze a complete structural model (joints, members, load combinations). Learn more
